Classical Neural Networks

Neural networks is one of the major branches in machine learning, with wide use in applications and research. A neural network—or, more generally, a deep neural network—is a parametric function of a specific structure (inspired by neural networks in biology), which is trained to capture specific functionality. In its most basic form, a neural network for learning a function f⃗:RN→RM\vec{f}: \mathbb{R}^N\rightarrow \mathbb{R}^M looks as follows:

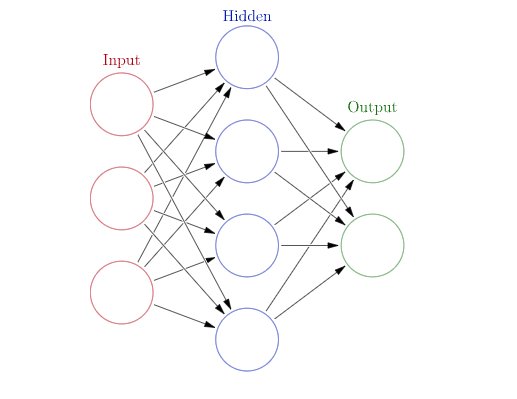

  1. There is an input vector of size NN (red circles in Fig. 1).
  2. Each entry of the input goes into a hidden layer of size KK, where each neuron (blue circles in Fig. 1) is defined with an “activation function” yk(w⃗(1);x⃗)y^{k}(\vec{w}^{(1)}; \vec{x}) for k=1,…,Kk=1,\dots,K, and w⃗(1)\vec{w}^{(1)} are parameters.
  3. The output of the hidden layer is sent to the output layer (green circles in Fig. 1) f~m(w⃗(2);y⃗)\tilde{f}^{m}(\vec{w}^{(2)};\vec{y}) for m=1,…,Mm=1,\dots,M, and w⃗(2)\vec{w}^{(2)} are parameters.
The output f~⃗\vec{\tilde{f}} is thus a parametric function (in w⃗(1), w⃗(2)\vec{w}^{(1)},\,\vec{w}^{(2)}), which can be trained to capture the target function f⃗\vec{f}. png
Deep neural networks are similar to the description above, having more than one hidden layer. This provides a more complex structure that can capture more complex functionalities.

​
Quantum Neural Networks

The idea of a quantum neural network refers to combining parametric circuits as a replacement for all or some of the classical layers in classical neural networks. The basic object in QNN is thus a quantum layer, which has a classical input and returns a classical output. The output is obtained by running a quantum program. A quantum layer is thus composed of three parts:
  1. A quantum part that encodes the input: This is a parametric quantum function for representing the entries of a single data point.
There are three canonical ways to encode a data vector of size NN: angle-encoding using NN qubits, dense angle-encoding using ⌈N/2⌉\lceil N/2\rceil qubits, and amplitude-encoding using ⌈log⁡2N⌉\lceil\log_2N\rceil qubits.
  1. A quantum ansatz part: This is a parametric quantum function, whose parameters are trained as the weights in classical layers.
  2. A postprocess classical part, for returning an output classical vector.
The integration of quantum layers in classical neural networks may offer reduction in resources for a given functionality, as the network (or part of it) is expressed via the Hilbert space, providing different expressibility compared to classical networks. This notebook demonstrates QNN by treating a specific function—the subset majority—for which we construct, train, and verify a hybrid classical-quantum neural network. The notebook assumes familiarity with Classiq and NN with PyTorch. See the QML guide with Classiq.

​
Example: Hybrid Neural Network for the Subset Majority Function

For an integer NN and a given subset of indices S⊂{0,1,…,N}S \subset \{0,1,\dots,N\} we define the subset majority function, MS:{0,1}×N→{0,1}M_{S}:\{0,1\}^{\times N}\rightarrow \{0,1\} that acts on binary strings of size NN as follows: it returns 1 if the number of ones within the substring according to SS is larger than ∣S∣//2|S|//2, and 0 otherwise, MS(b⃗)={1if ∑j∈Sbj>∣S∣//2,0otherwiseM_S(\vec{b}) = \left\{ \begin{array}{l l } 1 & \text{if } \sum_{j\in S} b_{j}>|S|//2, \\ 0 & \text{otherwise} \end{array} \right . For example, we consider N=7N=7 and S={0,1,4}S=\{0,1,4\}:
  • The string 0101110 corresponds to the substring 011, for which the number of ones is 2(>1). Therefore, MS(0101110)=1M_S(0101110)=1.
  • The string 0011111 corresponds to the substring 001, for which the number of ones is 1(=1). Therefore, MS(0101110)=0M_S(0101110)=0.

​

​
Generating Data for a Specific Example

Let us consider a specific example for our demonstration. We choose N=10N=10 and generate all possible data of 2N2^N bit strings. We also take a specific subset S={1,3,4,6,7,9}S=\{1, 3, 4, 6, 7, 9\}.
!pip install -qq -U "classiq[qml]"


import random

import numpy as np

np.random.seed(0)
random.seed(1)

STRING_LEN = 10
majority_data = [
    [int(d) for d in np.binary_repr(k, STRING_LEN)] for k in range(2**STRING_LEN)
]
random.shuffle(majority_data)  # shuffling the data


SUBSET_INDICES = [1, 3, 4, 6, 7, 9]
subset_indicator = np.zeros(STRING_LEN)
subset_indicator[SUBSET_INDICES] = 1


majority = (majority_data @ subset_indicator > len(SUBSET_INDICES) // 2) * 1
labels = [[l] for l in majority]
We choose data for training and data for verification, and define the batch size for the corresponding data loaders:
TRAINING_SIZE = 340
TEST_SIZE = 512

training_data = majority_data[0:TRAINING_SIZE]
training_labels = labels[0:TRAINING_SIZE]
test_data = majority_data[TRAINING_SIZE : TRAINING_SIZE + TEST_SIZE]
test_labels = labels[TRAINING_SIZE : TRAINING_SIZE + TEST_SIZE]


BATCH_SIZE = 64


import numpy as np
import torch
from torch.utils.data import DataLoader, TensorDataset

training_dataset = TensorDataset(
    torch.Tensor(training_data), torch.Tensor(training_labels)
)  # create dataset
training_dataloader = DataLoader(
    training_dataset, batch_size=BATCH_SIZE, shuffle=True, drop_last=False
)  # create dataloader

test_dataset = TensorDataset(
    torch.Tensor(test_data), torch.Tensor(test_labels)
)  # create your dataset
test_dataloader = DataLoader(
    test_dataset, batch_size=BATCH_SIZE, shuffle=True, drop_last=False
)  # create your dataloader

​

​
Constructing a Hybrid Network

We build the following hybrid neural network: Data flattening →\rightarrow A classical linear layer of size 10 to 4 with Tanh activation →\rightarrow A qlayer of size 4 to 2 →\rightarrow a classical linear layer of size 2 to 1 with ReLU activation. The classical layers can be defined with PyTorch built-in functions. The quantum layer is constructed with (1) a dense angle-encoding function (2) a simple ansatz with RY and RZZ rotations (3) a postprocess that is based on a measurement per qubit

​

​
The Quantum Layer

from classiq import *
from classiq.applications.qnn.types import SavedResult
from classiq.execution import ExecutionPreferences, execute_qnn


@qfunc
def my_ansatz(weights: CArray[CReal], qbv: QArray) -> None:
    """
    Gets a quantum variable of $m$ qubits, and applies RY gate on each qubit and RZZ gate on each pair of qubits
    in a linear connectivity.

The classical array weights represents the $2m-1$ parametric rotations.
    """
    repeat(
        count=qbv.len,
        iteration=lambda index: RY(weights[index], qbv[index]),
    )
    repeat(
        count=qbv.len - 1,
        iteration=lambda index: RZZ(weights[qbv.len + index], qbv[index : index + 2]),
    )


QLAYER_SIZE = 4
num_qubits = int(np.ceil(QLAYER_SIZE / 2))
num_weights = 2 * num_qubits - 1
NUM_SHOTS = 4096


@qfunc
def main(
    input: CArray[CReal, QLAYER_SIZE],
    weight: CArray[CReal, num_weights],
    result: Output[QArray],
) -> None:
    """
    The quantum part of the quantum layer.

The prefix for the data loading parameters must be set to `input_` or `i_`.

The prefix for the ansatz parameters must be set to `weights_` or `weight`
    """
    encode_on_bloch(input, result)
    my_ansatz(weights=weight, qbv=result)


qmod = create_model(
    main, execution_preferences=ExecutionPreferences(num_shots=NUM_SHOTS)
)
qprog = synthesize(qmod)
show(qprog)
Output:

Quantum program link: https://platform.classiq.io/circuit/32pQqOSulTv1Qvssd71mPgf4btU



def my_post_process(result: SavedResult, num_qubits, num_shots) -> torch.Tensor:
    """
    Classical postprocess function.

Gets the histogram after execution and returns a vector $\vec{y}$,
    where $y_i$ is the probability of measuring 1 on the $i$-th qubit.
    """
    res = result.value
    yvec = [
        (res.counts_of_qubits(k)["1"] if "1" in res.counts_of_qubits(k) else 0)
        / num_shots
        for k in range(num_qubits)
    ]

    return torch.tensor(yvec)

​

​
The Full Hybrid Network

Now, we can define the full network.
import torch.nn as nn

from classiq.applications.qnn import QLayer


def create_net(*args, **kwargs) -> nn.Module:
    class Net(nn.Module):
        def __init__(self, *args, **kwargs):
            super().__init__()
            self.flatten = nn.Flatten()
            self.linear_1 = nn.Linear(STRING_LEN, 4)
            self.activation_1 = nn.Tanh()
            self.linear_2 = nn.Linear(2, 1)
            self.activation_2 = nn.ReLU()

            self.qlayer = QLayer(
                qprog,
                execute_qnn,
                post_process=lambda res: my_post_process(
                    res, num_qubits=num_qubits, num_shots=NUM_SHOTS
                ),
                *args,
                **kwargs,
            )

        def forward(self, x):
            x = self.flatten(x)
            x = self.linear_1(x)
            x = self.activation_1(x)
            x = self.qlayer(x)  # 4 to 2
            x = self.linear_2(x)  # 2 to 1
            x = self.activation_2(x)
            return x

    return Net(*args, **kwargs)


my_network = create_net()

​

​
Training and Verifying the Networks

We define some hyperparameters such as loss function and optimization method, and a training function:
import torch.nn as nn
import torch.optim as optim

LEARNING_RATE = 0.05

# choosing our loss function
loss_func = nn.MSELoss()

# choosing our optimizer
optimizer = optim.SGD(my_network.parameters(), lr=LEARNING_RATE)
Next, we define a train function:
import time as time

from torch.utils.data import DataLoader


def train(
    network: nn.Module,
    data_loader: DataLoader,
    loss_func: nn.modules.loss._Loss,
    optimizer: optim.Optimizer,
    epoch: int = 20,
) -> None:
    for index in range(epoch):
        start = time.time()
        for data, label in data_loader:

            optimizer.zero_grad()
            output = network(data)
            loss = loss_func(output, label.type(output.dtype))
            loss.backward()

            optimizer.step()

        print(index, f"\tloss = {loss.item()}", "time", time.time() - start)
We also define a validation function, check_accuracy, which tests a trained network on new data:
from torch import Tensor


def get_correctly_guessed_labels_function(
    model: nn.Module, data: Tensor, labels: Tensor
) -> int:
    predictions = model(data)
    list_of_predictions = [
        round(prediction.type(torch.float).item()) for prediction in predictions
    ]
    correct = sum(
        [
            list_of_predictions[k] == labels.flatten().tolist()[k]
            for k in range(len(predictions))
        ]
    )
    return correct


def _get_amount_of_labels(labels: Tensor) -> int:
    # the first dimension of `labels` is `batch_size`
    return labels.size(0)


def check_accuracy(
    network: nn.Module,
    data_loader: DataLoader,
    should_print: bool = True,
) -> float:
    num_correct = 0
    total = 0

    network.eval()

    with torch.no_grad():
        for data, labels in data_loader:
            num_correct += get_correctly_guessed_labels_function(network, data, labels)
            total += _get_amount_of_labels(labels)

    accuracy = float(num_correct) / float(total)

    if should_print:
        print(f"Test accuracy of the model: {accuracy*100:.2f}%")
        print(f"num correct: {num_correct}, total: {total}")

    return accuracy

​

​
Training and Verifying the Network

For convenience, we load a pre-trained model and set the epoch size to
  1. Training a network takes around 30 epochs.
# comment out for training
my_network.load_state_dict(torch.load("trained_model.pth"))
num_epoch = 1
# uncomment out for training
# epoch=30


data_loader = training_dataloader
train(my_network, training_dataloader, loss_func, optimizer, epoch=num_epoch)
Output:
0 	loss = 0.09676678478717804 time 169.12708473205566



accuracy = check_accuracy(my_network, test_dataloader)
Output:

Test accuracy of the model: 97.07%
  num correct: 497, total: 512
